Timbangan & Indicator » PT

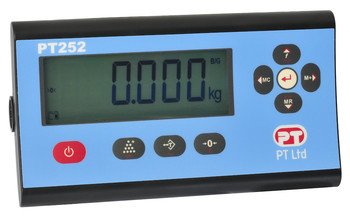

PT252

SPECIFICATIONS Power Supply: 12VDC and 100-240V AC Adaptor Battery: 2000mAh Li-ion Battery life: Up to 36hrs for 1 load cell, 24hrs for 4x350Ω Load Cell Excitation: 5V, up to 4x 350Ω or 8x 700Ω load cells, 4 or 6 wire Input range: 0mV to +18mV. Minimum 0.1 μV/division Zero Adjustment Range: -18mV to +18mV Scale Range: Up to 15000kg or 30000lb Units: g, kg, oz, lb Resolution: Max. Displayed 30000, internal 16000000, 24 bit Delta Sigma ADC Display: 112x40mm extra wide angle backlit LCD with 25mm digit height Annunciators: Gross, net, motion, centre of zero, units Keypad: 9 key (on/off, user assignable Function, Tare/Clear, Zero, navigation and memory) Operating Environment: -15ºC to +55ºC; max. 85% RH, non-condensing. IP30 with front panel sealing. Enclosure and Dimensions: ABS, IP30 protected. 220x110x55mm Calibration: Calibration can be performed with or without load cell non-linearity correction. Digital Filter: Adaptive digital filter adjustable in 3 steps for standard weighing, Adaptive digital filter adjustable in 4 steps for dynamic (animal) weighing. Weighing Functions: Taring, zeroing, auto zero tracking, motion detection, auto zero at power up, increased resolution, unit change, temporary gross weight indication, dynamic(animal) weighing. Totalising: 2 separate total memories for Weighing and Counting Counting: Sampling or using Average Part Memory (APW), APW optimization is available with APW memory for 100 different parts. Sampling quantity selectable as 10,20,30,50,100 pcs Check Weighing (classifying): Under, OK, Over status bars on display and programmable buzzer, Memory for 100 products. Operator prompting with Under, OK, Over status bars on display and programmable internal buzzer Dynamic (Animal Weighing): Supported by smart dynamic weighing algorithms RS-232: 1200 to 115200 baud, 8N1. 2nd RS232 available as an option (transmit only). Data Output: Demand, Continuous and Fast Continuous Print ticket format: Programmable for different weighing modes. Format may include Date, Time, Ticket No, Gross, Tare and Net weights, Quantity. Label (print ticket) count number can be Preset. Date Format: Programmable as dd.mm.yyyy, mm.dd.yyyy or yyyy.mm.dd Print languages: English, Turkish, German, French, Spanish
