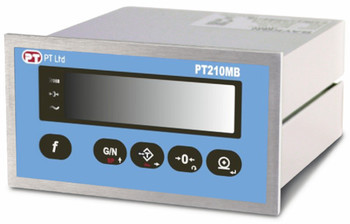

PT210

SPECIFICATIONS Power Supply: 12-28VDC max., 300mA. Non-linearity: <0.0015% FSO Temperature Coefficient: <2 ppm/ºC Load Cell Excitation: 5V, 120mA max. (up to 8x 350Ω or 16x 700Ω load cells, 4 or 6 wire) Input range: 0mV to +18mV (weighing). -18mV to +18mV (bidirectional force) Minimum 0.1 μV/division Zero Adjustment Range: -18mV to +18mV Conversion Rate: Up to 1600 times per second Units: g, kg, t, lb, klb, N, kN Resolution: Max. Displayed 999999, internal 16000000, 24 bit Delta Sigma ADC Display: 6 digits, 7 segments red LED, 13.5 mm high Display Annunciators: Gross, net, motion, centre of zero, units Keypad: 5 key (user assignable Function, G/N, Tare/Clear, Zero, Print) with lock Operating Environment: -15ºC to +55ºC; max. 85% RH, non-condensing. IP67 with front panel sealing. Enclosure and Dimensions: Stainless steel front panel, aluminium casing, stainless rear. 100mm x 55mm panel, 100mm deep. 1/8DIN cutout. Calibration: Span calibration with weights, even without without zero calibration. vCal for calibration by direct entry of load cell characteristics. Calibration of span and zero by fieldbus commands. Weighing Functions: Tare, zeroing, auto zero track, motion detection, auto-zero at power up, peak hold, hold. Digital Filter: Adaptable filter adjustable in 10 steps. Other Functions: Pre-settable label (print ticket) count number, gross or tare indication. Print ticket format: Programmable as single line or multi-line. Input/Output: Up to 4 programmable inputs (12-28VDC) for zero, tare, clear, hold, peak, print, etc., up to 5 relay outputs for weight set points or fieldbus control. RS-232C: 1200 to 115200 baud, programmable. Continuous, Printer, BSI RS-485: 1200 to 115200 baud, programmable. Up to 31 units on the bus Modbus RTU: 1200 to 115200 baud, programmable, up to 31 units on the RS-485 bus. Ethernet TCP or Modbus TCP: 10 Mbit/s (half duplex), galvanically isolated. PROFIBUS: PROFIBUS DP V1. 9.6 kbit/s to 12 Mbit/s automatic baud rate detection. PROFINET: 100 Mbit/s (full duplex), galvanically isolated. CANopen: 10 kbit/s to 1 Mbit/s automatic baud rate detection. Analogue: Configurable to 4 – 20 mA, 0 – 20 mA, 0 – 5 VDC or 0 – 10 VDC.
