Timbangan & Indicator » PT

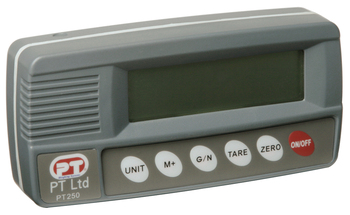

PT250

SPECIFICATIONS Load Cell Excitation . Load Cell Input Voltage Input Zero Offset Voltage Input Sensitivity Linearity Conversion Rate . Internal Resolution Display . Maximum Capacity Min. Division Decimal Point Memory . DC 5V, 150mA Up to Four 350Ω Load Cells 0~15mV 0~5mV 0.3µV/D or more recommended 0.01% or better Approximately 60 times/sec.(max) 600000 counts LCD, 6 digits, height 22mm, LED back light kg, lb, oz, Tj or Hj 99990 1, 2, 5, 10, 20, 50 0, 0.0, 0.00, 0.000, 0.0000 Calibration parameter and function setting are all stored in EEPROM. Power Requirement Mains Adaptor . Rechargeable Battery . .. Other Operating Temperature Operating Humidity Dimensions Weight . Additional Interface RS-232 . Input 120/230VAC 50~60Hz, output 12V/500mA. 7.2V-6pcs Hi-MH rechargeable battery kit (1200mA/hr) std. Battery life up to 30 hours . 0C ~ 40C < 85% R.H W 49.5 x L193 x H134 (mm) 700 (g) . . Standard
