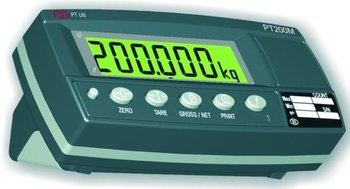

PT200

SPECIFICATIONS Resolution . . . Zero Cancellation Span Adjustment Stability/Drift . . Excitation . . . A/D Type . A/D Conversion Rate Operating Environment . . PT200R & PT200M PT200P Setup & Calibration . Digital Filter . Zero Range Up to 30,000 Divisions, Minimum of 0.25µV/Division, 20 Updates/Second (Trade 4000 Divns. at 0.8µ/Division) ±2mV/V 0.1mV/V - 3.0mV/V Full Scale Zero < 0.1µV/°C (+8ppm Deadload Max), Span< 8ppm/°C, Linearity< 20ppm, Noise< 0.2µVp-p 5V for up to 4 x 350Ω or 8 x 700Ω Load Cells (4-wire or 6-wire plus shield), Max Total Load Cell Resistance 1.000Ω 24bit Sigma Delta with 8,388,608 Internal Counts 20Hz with FIR Filtering . 80dB -10 ~ 50°C Ambient Temperature, > 90% Non-Condensing Humidity, -20 ~ 50°C Ambient Storage IP55 when panel mounted IP65 Full Digital Visual Prompting in Plain Messages Sliding Window Average 0.1 ~ 4 seconds Adjustable 2 ~ 20% Full Capacity Display . Standard Power Input . AC Plug Pack . Battery . opto-LINK Data Coupling . . Case Materials .. . PT200M Extra Features Linearity Correction RS-232 Automatic Transmit . . Assignable Function Key . 2 Isolated Transistor Drive Outputs Battery Backed Clock Calendar . PT200P Extra Features . Packing Weights . . LED Backlit LCD, Six 20mm High Digits With Units & Annunciators 12 ~ 24V DC (2.5 VA max), ON/OFF Key With Memory Feature 110/240V AC 50/60HZ Input 12V DC 0.5A Output (optional) 4 x A4 (Alkaline/Rechargeable NiMH, NiCad, etc. (optionsal) Infra-red Connector Optional opto-LINK (PC RS-232 Port Cable) PT200R & PT200M: ABS, Silicon Rubber, Nylon, Acrylic (no halogen used) (see below) 5 point For Network or Printer Outputs Transmission Rate: 2400, 4800 or 9600 Baud Unit Switching, Counting, Manual Hold Peak Hold, Live Weight and Totalising 300mA Total At 50V DC Battery Life 10 years Minimum . Equivalent to PT200M with IP65 Stainless Steel Housing Basic Indicator PT200R & PT200M: 0.34kg PT200P: 2.4kg
